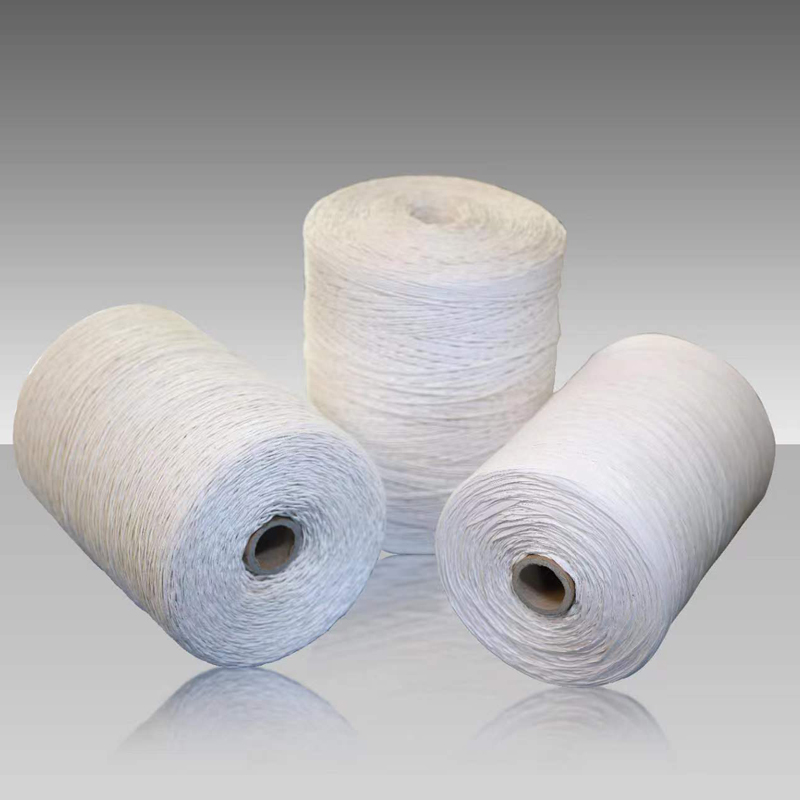

PP Filling Rope for Cables
CONTACT US

Product Description

Made from polypropylene as the base material, it is processed into a high-strength mesh filling material by a dedicated machine. It can be twisted according to customer requirements or made into flame-retardant filling ropes by adding environmentally friendly flame retardants. Product specifications: 2000D - 30000D. The finished product has excellent flexibility, is lightweight, non-hygroscopic, and its strength is not affected by moisture. It has high tensile strength, excellent resistance to acids, alkalis, and mold, good high-frequency insulation performance, high voltage resistance, and is non-toxic and environmentally friendly. It is widely used as a lightweight structural filler for composite communication cables, steel wire ropes, power cables, and special flame-retardant and heat-resistant cables.

Main specification

产品规格

Specification

伸长率

Elongation (%)

拉断力

Pulling strength (N)

热收缩率

Heat shrinkage (%)

捻后直径

Twisted diameter (mm)

2000D

15↓

30↑

2.5↓

0.4

4000D

15↓

50↑

2.5↓

0.5

5000D

15↓

55↑

2.5↓

0.6

8000D

15↓

80↑

2.5↓

1.0

10000D

15↓

90↑

2.5↓

1.2

12000D

15↓

100↑

2.5↓

1.5

15000D

15↓

150↑

2.5↓

1.8

20000D

15↓

200↑

2.5↓

2.2

30000D

15↓

300↑

2.5↓

2.6

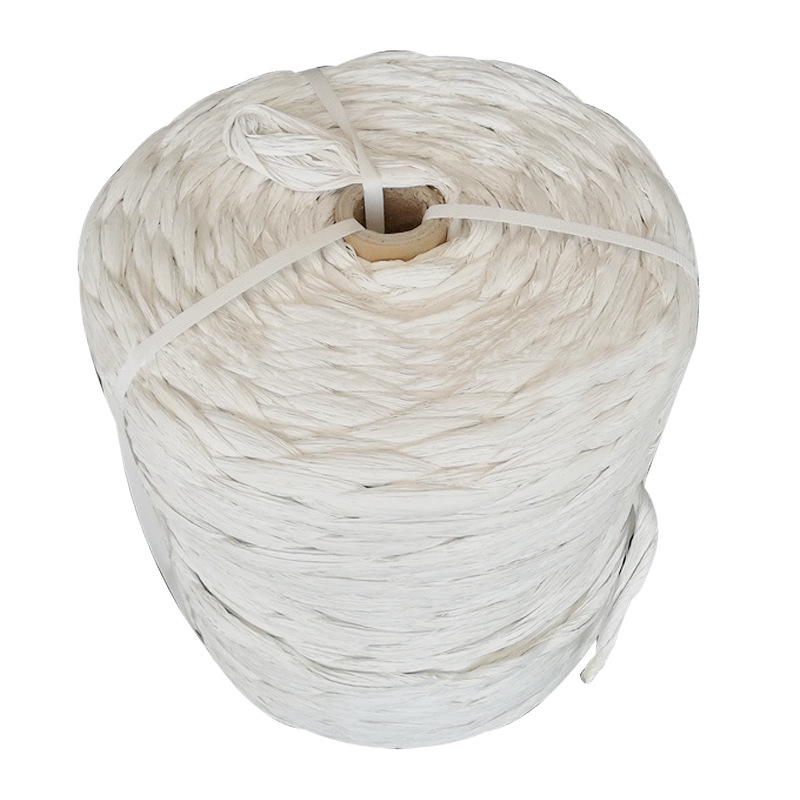

Product Pictures

yu

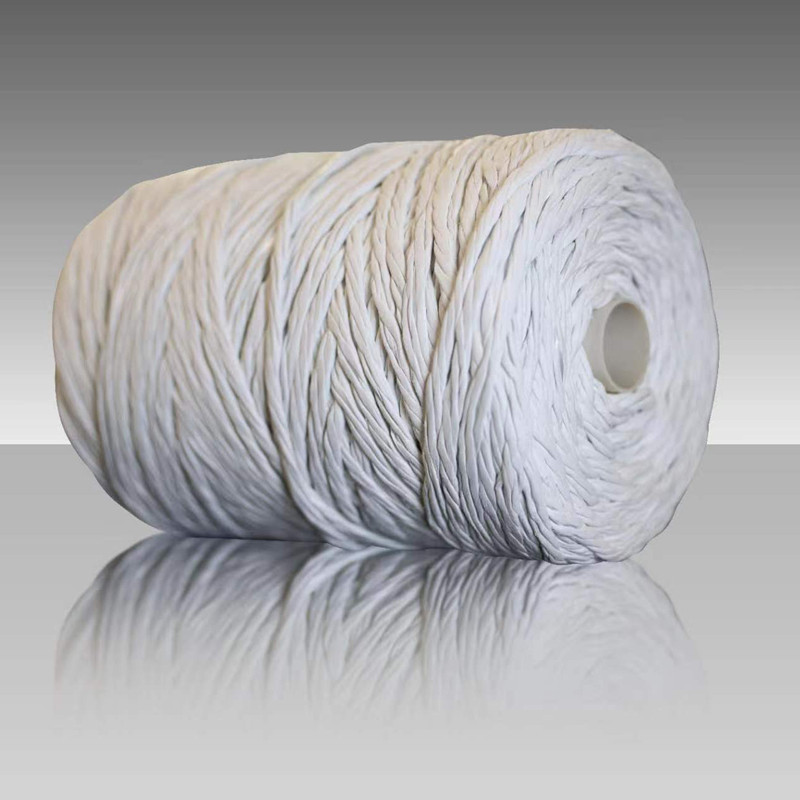

IMG_0926(20230911-102220)

IMG_0925(20230911-102216)

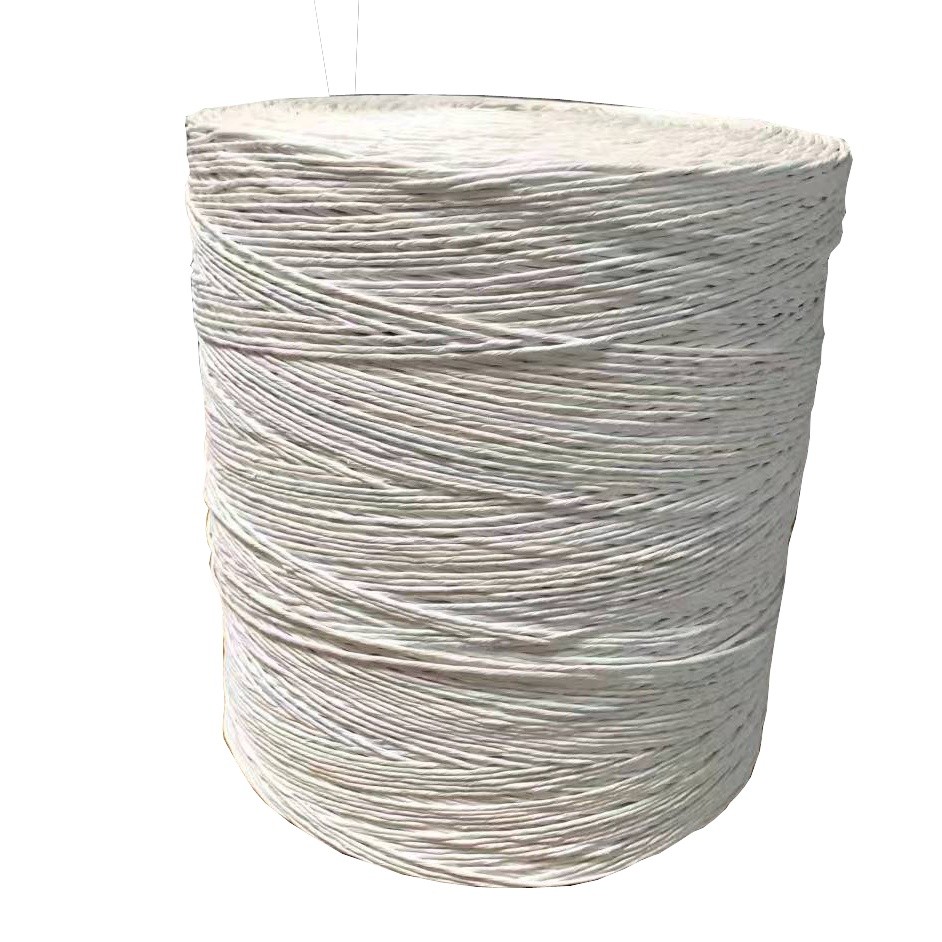

IMG_0924(20230911-102216)

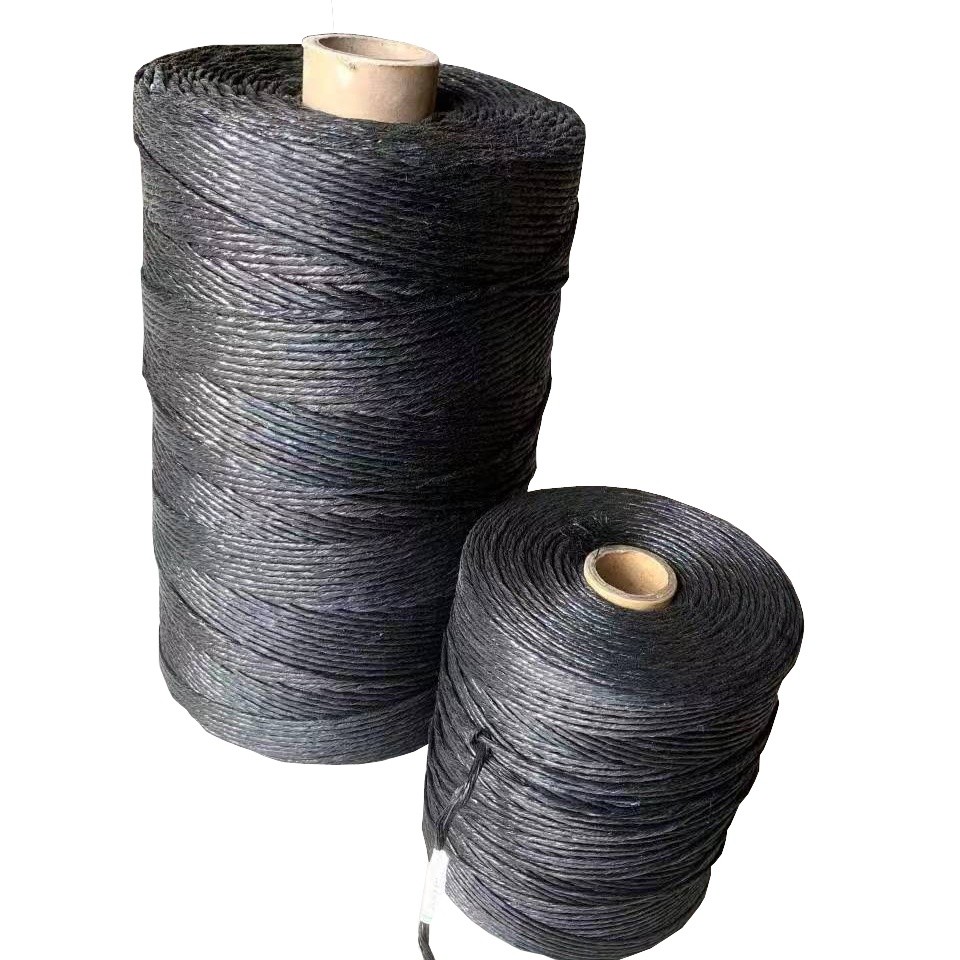

IMG_0923(20230911-102154)

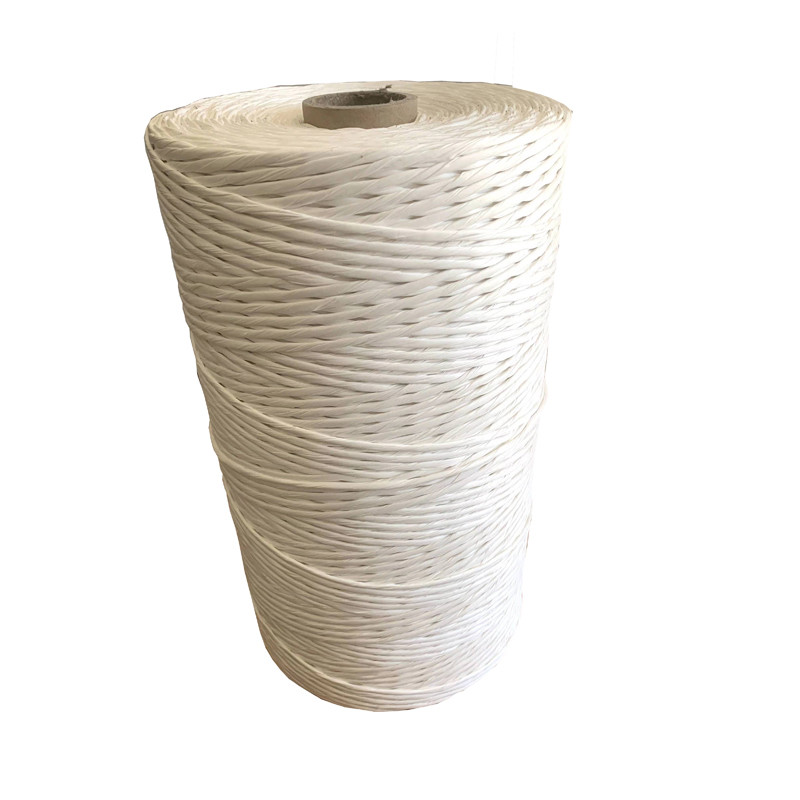

IMG_0922(20230911-102153)
