PE Slitted Roll with Undulating Rib on One Side and Mini Rib on The Other Side
Application: Insulators

Type: Insulation Sheet

Chemistry: Hybrid Insulation

Material: PE

Thermal Rating: E 120

Color: Blue

E-mail:guotai@fiberglass-china.com

CONTACT US

Basic Info.


Model NO.

PE Slitted Roll With Undulating Rib

Form

Slitted Roll

Thickness with Rib

3.4mm

Roll Length

Customized

Rib Style on Two Sides of PE

Undulating Rib + Mini Rib

Specification

187x0.4x3.4mm

Origin

China

Brand

Guotai

Width

187mm

Base Thickness

0.4mm

Packing

Cartons or Pallet Packing

Transport Package

by Carton or Pallet

Trademark

GT

HS Code

85079010

Production Capacity

12000sqr/Day


Product Description


PE Slitted Roll With Undulating Rib On One Side And Mini Rib On The Other Side

According to customers' special requirement on rib style, we make PE slitted roll with undulating rib on one side and mini rib on the other side. It mainly used for industrial battery as separators.

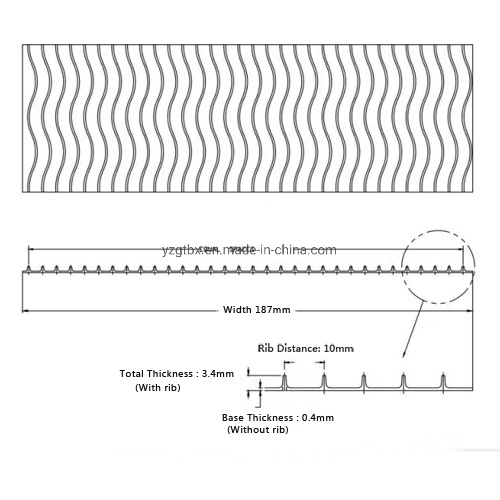

General specification:

Width:187mm

Base thickness without rib:0.4mm

Total thickness with rib:3.4mm

Other rib style and size can be customized according to customers' requirement.


Attributes

Unit

Typical Value

Backweb Thickness

um

400

Electrical Resistance

mΩ-cm2

210

Porosity

%

58

Elongation(CMD)

%

200

Diamensional Stability

%

-1.0

Backweb Oil

%

15-17

Total Oil

%

19-21


Property:

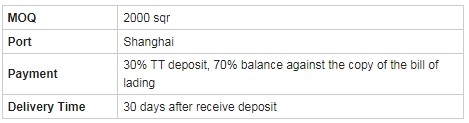

Trade Terms

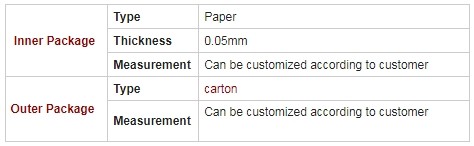

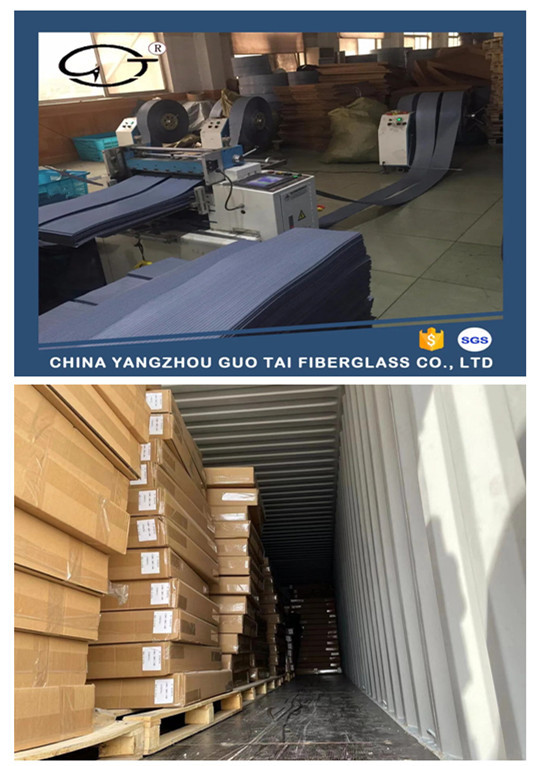

Package



Company Information

We are located in Yangzhou,a famous historic city in china,with only one hour from Shanghai high-speed railway station.In the past 15 years,we supply fiberglass,basalt fiber and carbon fiber product to more than 42 countries and make cooperation with them for long time.

From 2002,we are engaged in battery separator series.From raw material like water-dispersed chopped strands and micro fiber,then deal with AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.

The reason you choose us :

1. We are one of the best suppliers of glass fiber in china.

2.We are engaged in battery separator series:  raw material like water-dispersed chopped strands and micro fiber,AGM fiberglass separator,AGM micro fiber separator,fiberglass composite separator,PP separator,PVC separator,PE separator,PE separator and some basic material like UHMWPE,SP1125,and lignin and so on.

3.We ensure the deliver time,high quality,and the best after-sale service for you.

4.Any problems,no matter big or amall,we will do our best to solve it with you,make you satisfied.

We hope to make cooperation with you for long time !

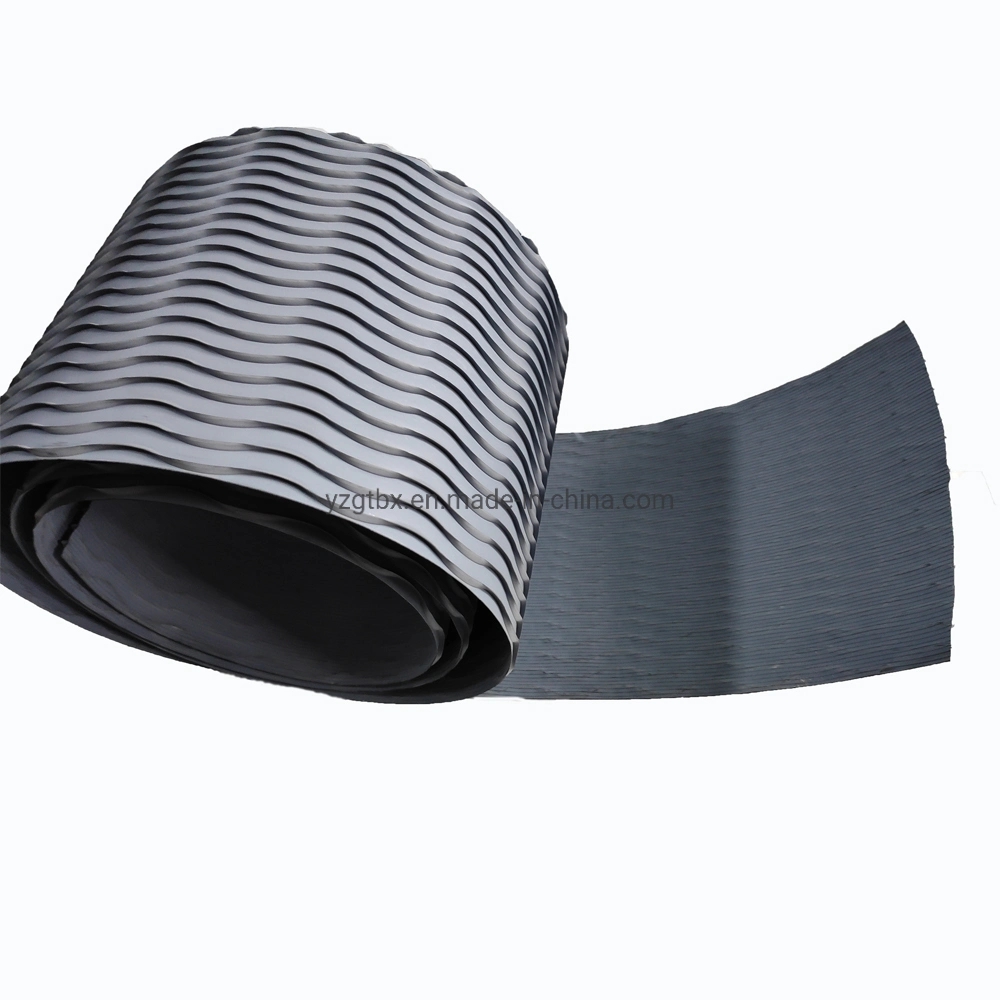

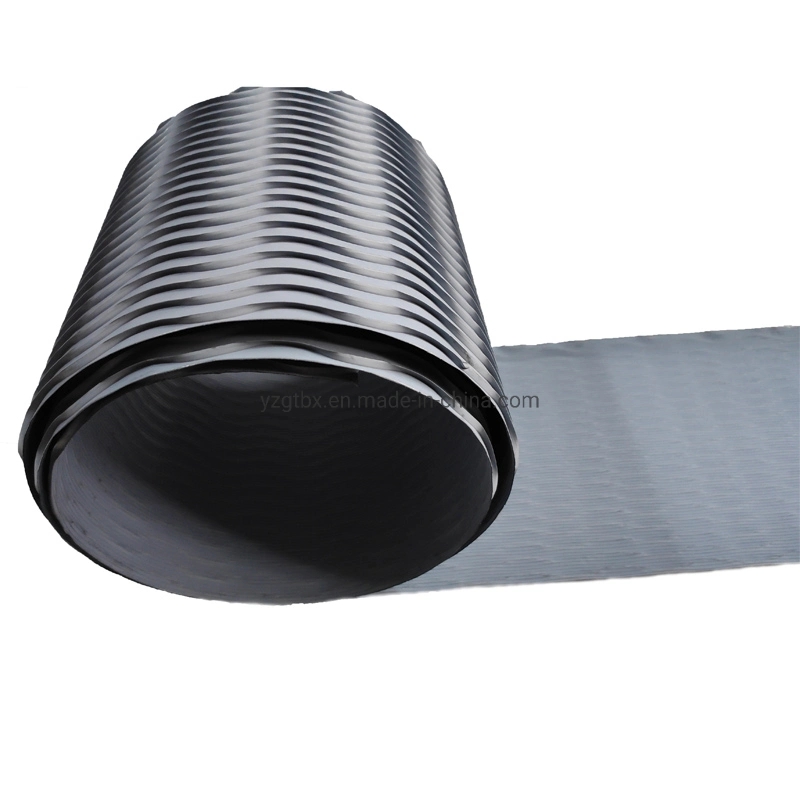

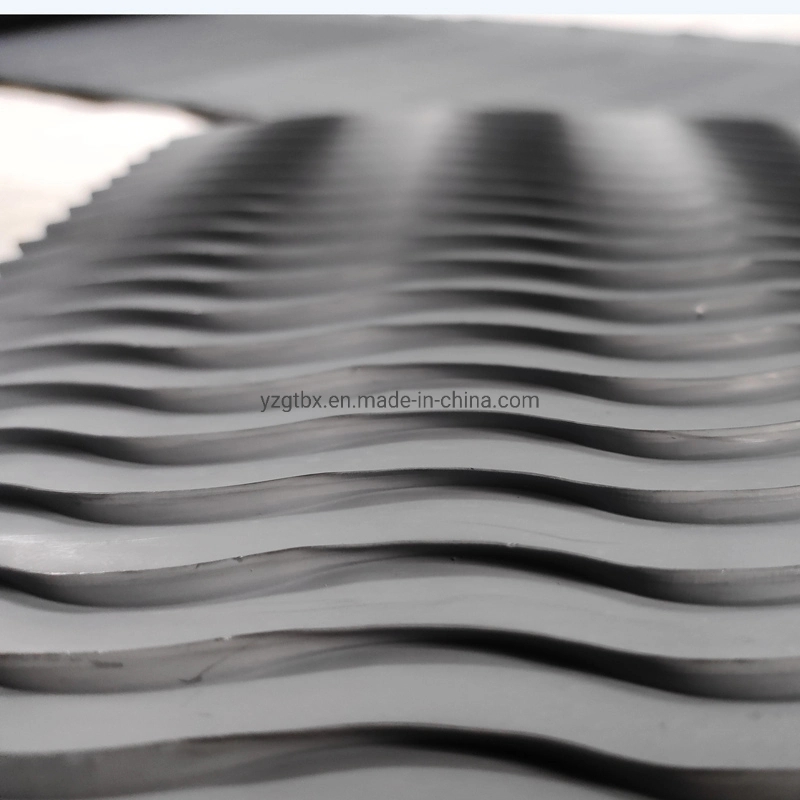

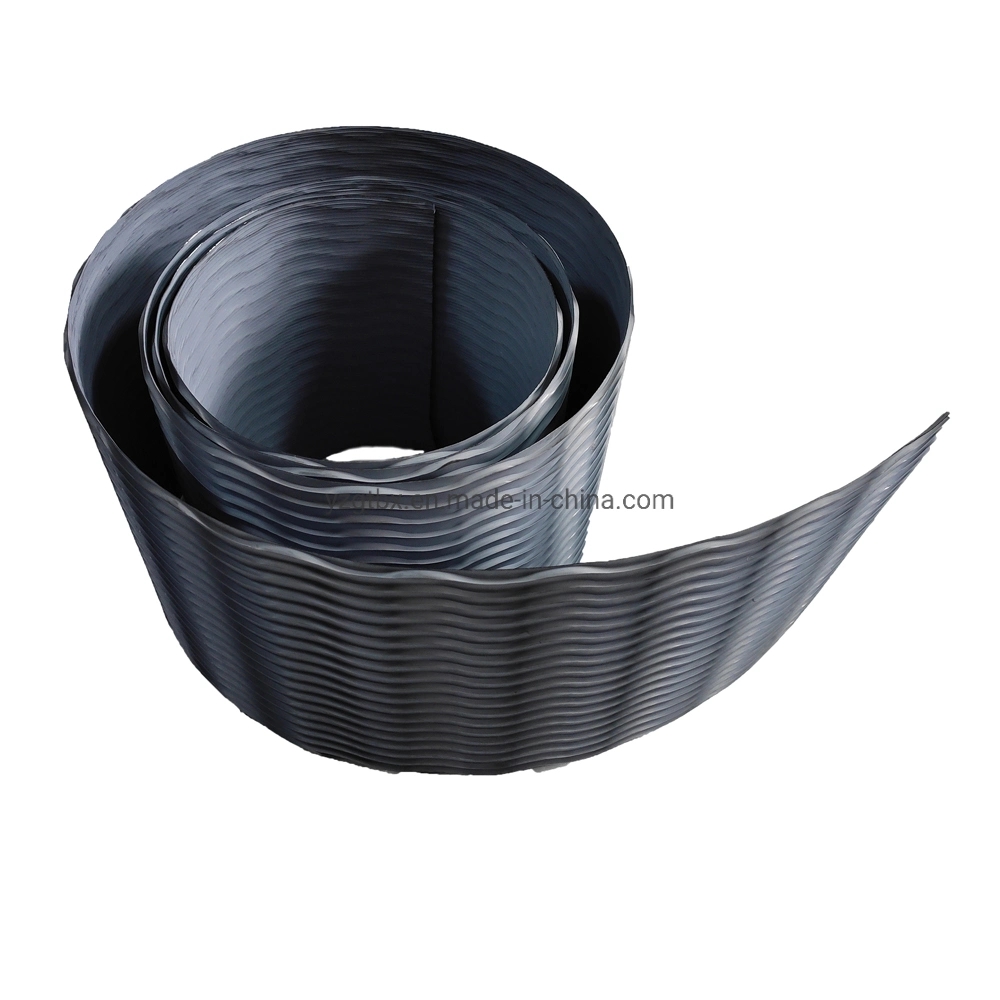

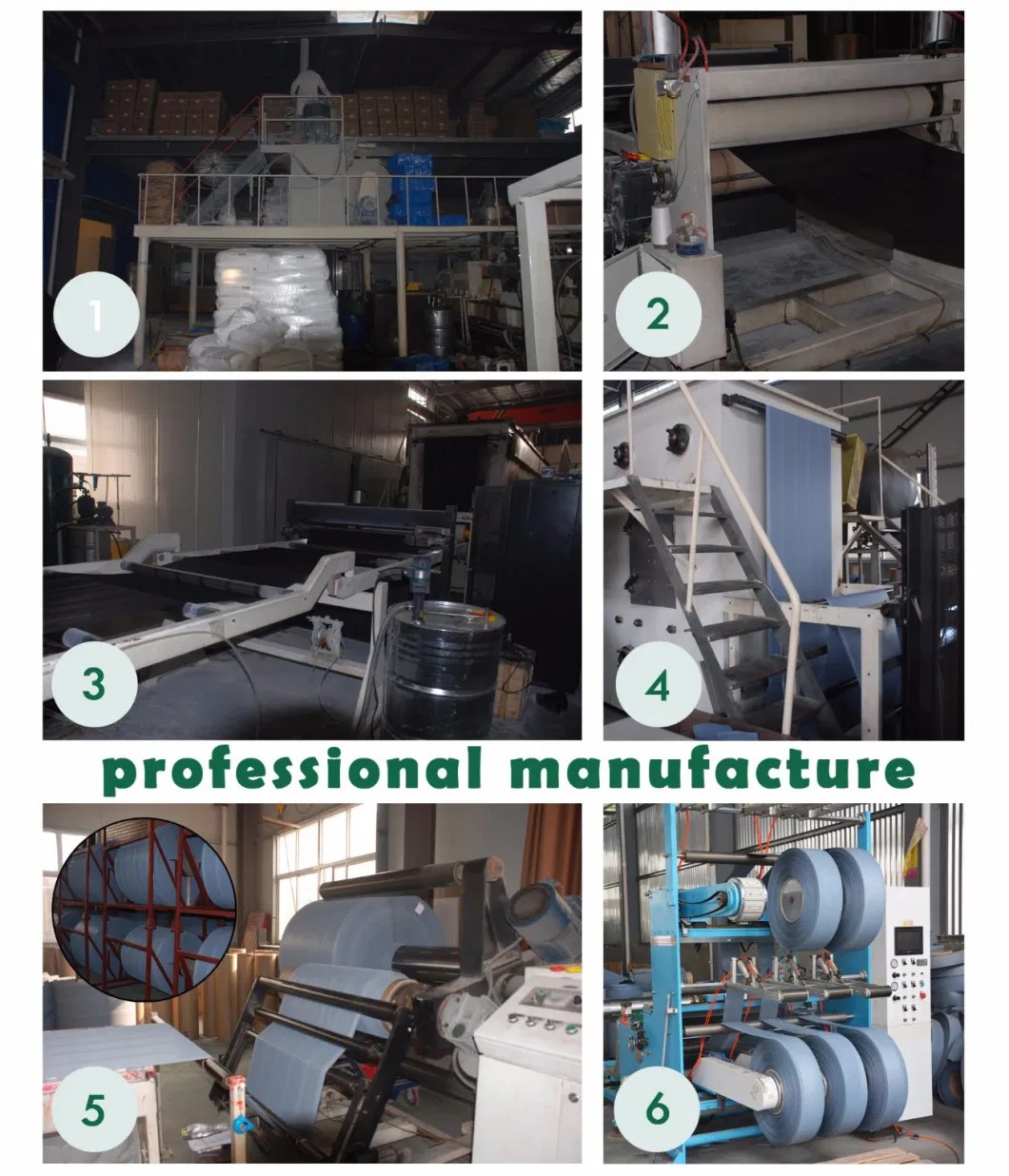

Product Pictures




PE Slitted Roll with Undulating Rib on One Side and Mini Rib on The Other Side




PE Slitted Roll with Undulating Rib on One Side and Mini Rib on The Other Side


PE Slitted Roll with Undulating Rib on One Side and Mini Rib on The Other Side
